Description

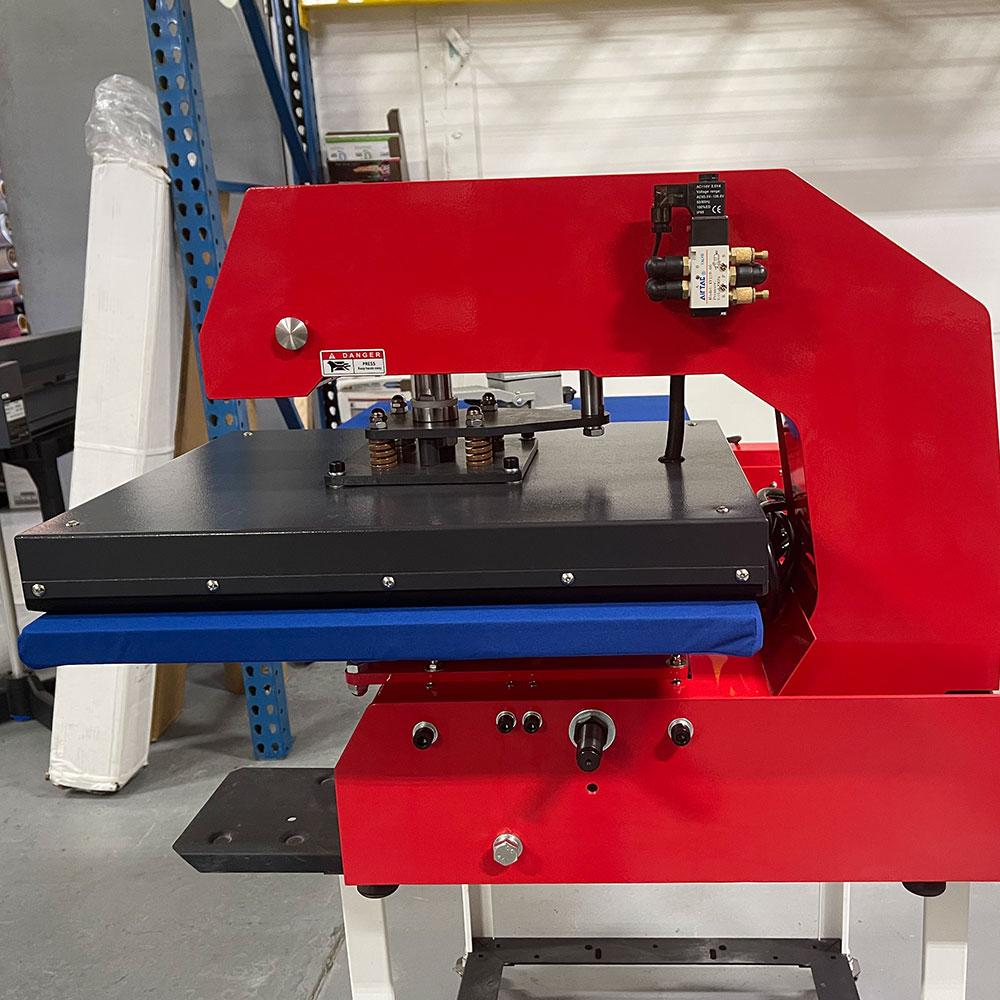

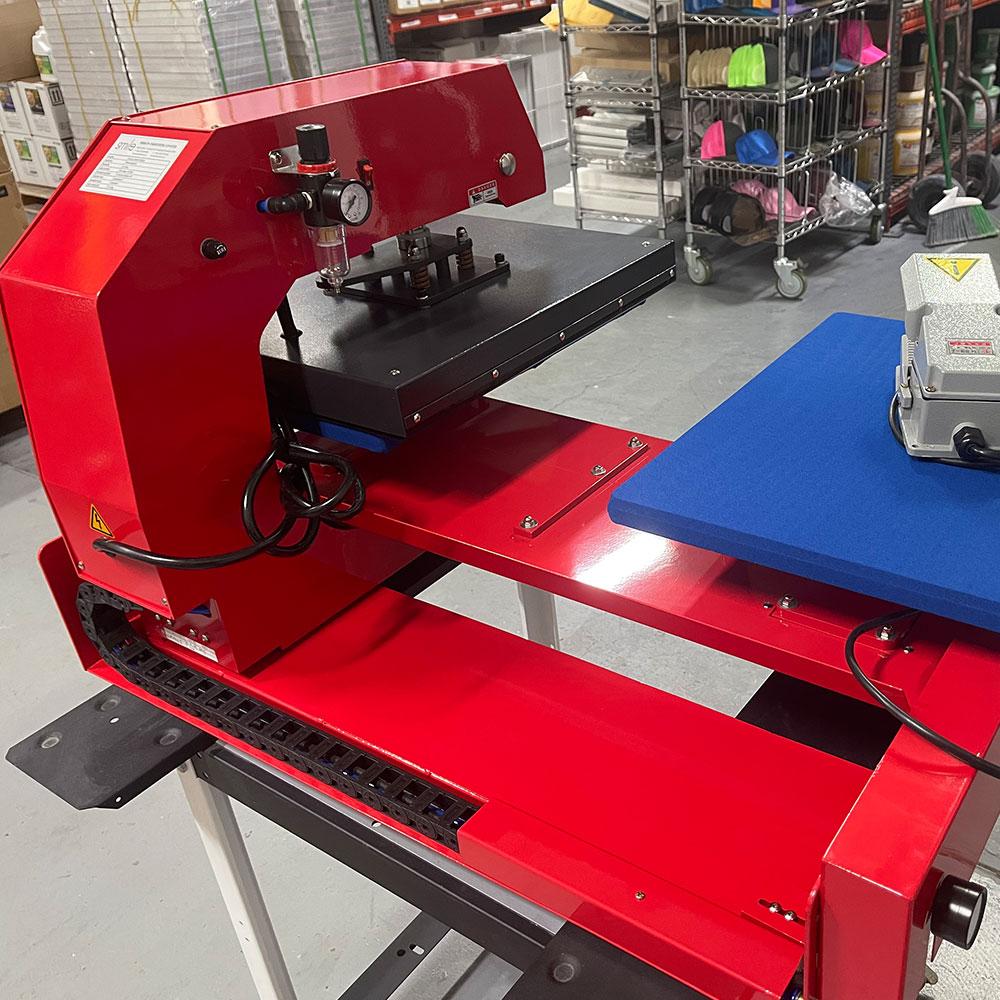

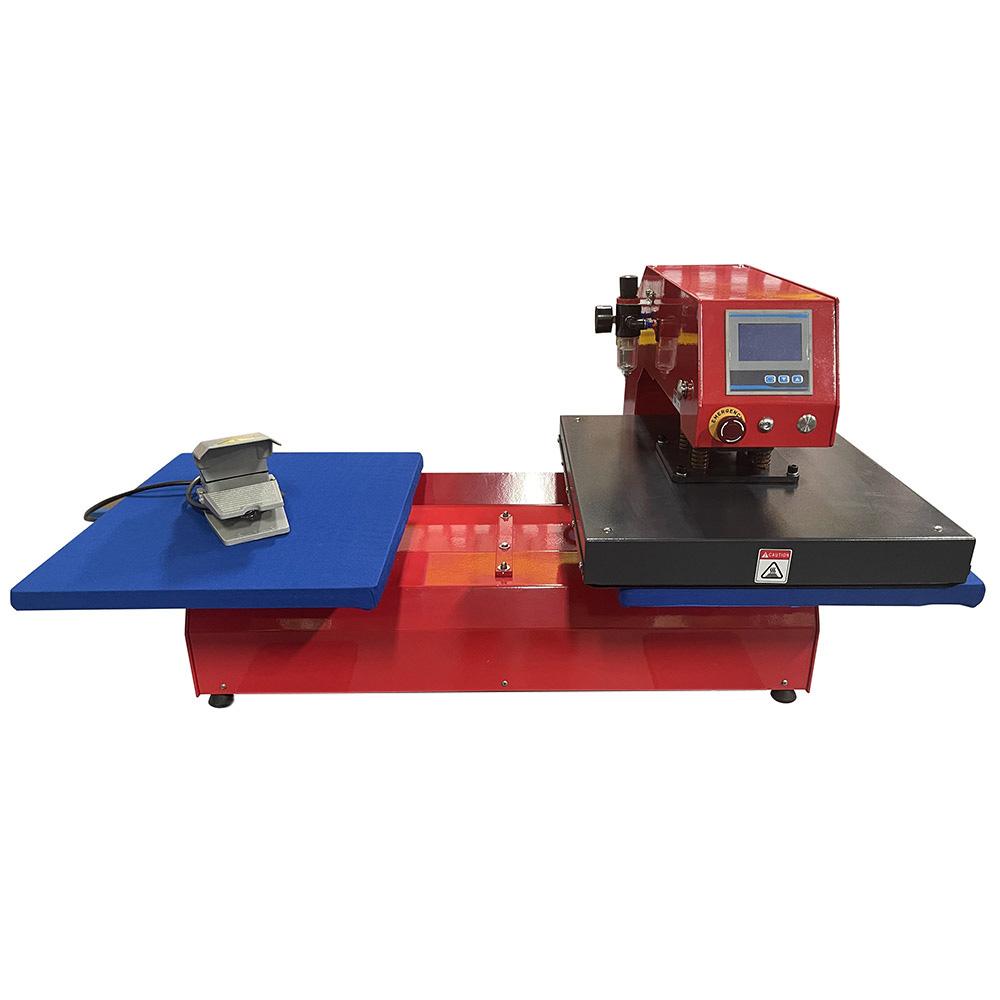

The AmeriFLEX™ pneumatic heat press is built for high-volume production. An air cylinder drives the heat platen for consistent pressure on every press, a foot switch keeps your hands free, and a touch screen makes time and temperature easy to set. It handles t-shirts, towels, bags, socks, gloves and more — up to 260 presses per hour.
Highlights
- Up to 260 presses per hour.
- Automatic and manual modes.

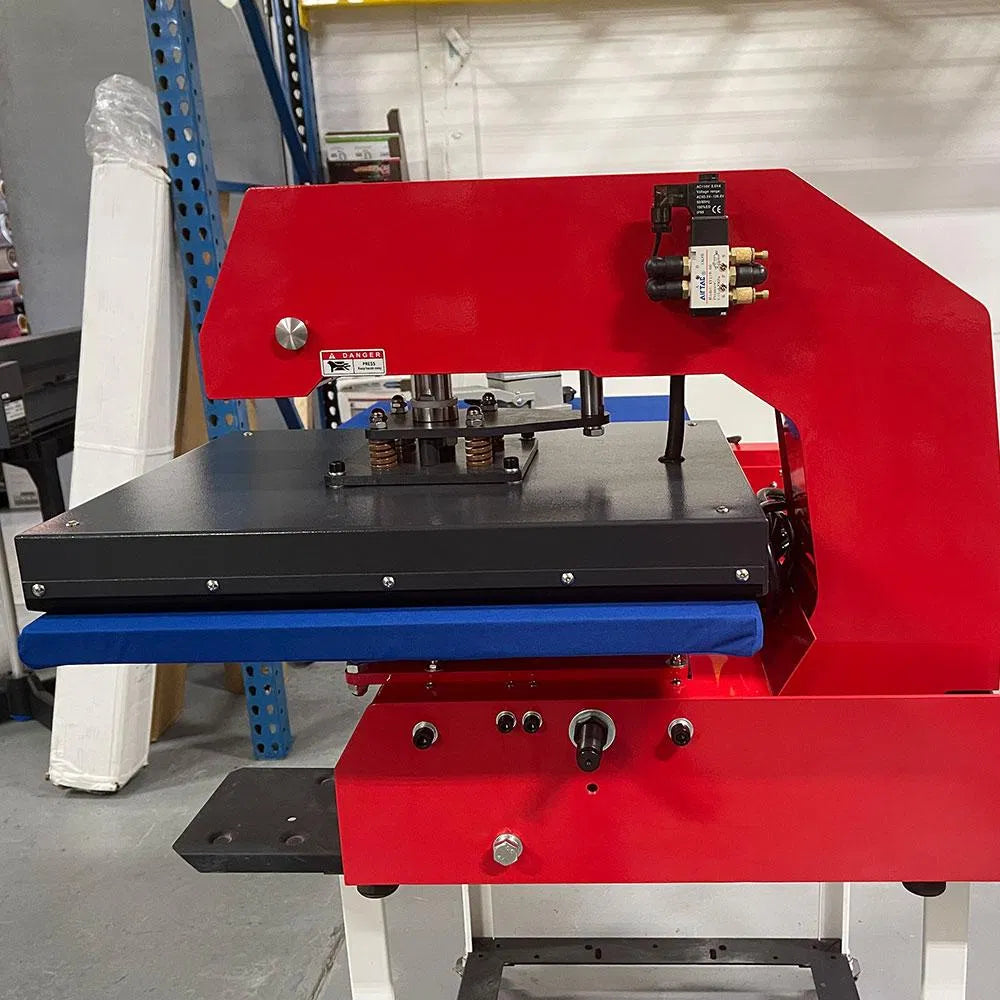

- Pneumatic drive – consistent, adjustable pressure and platen speed.

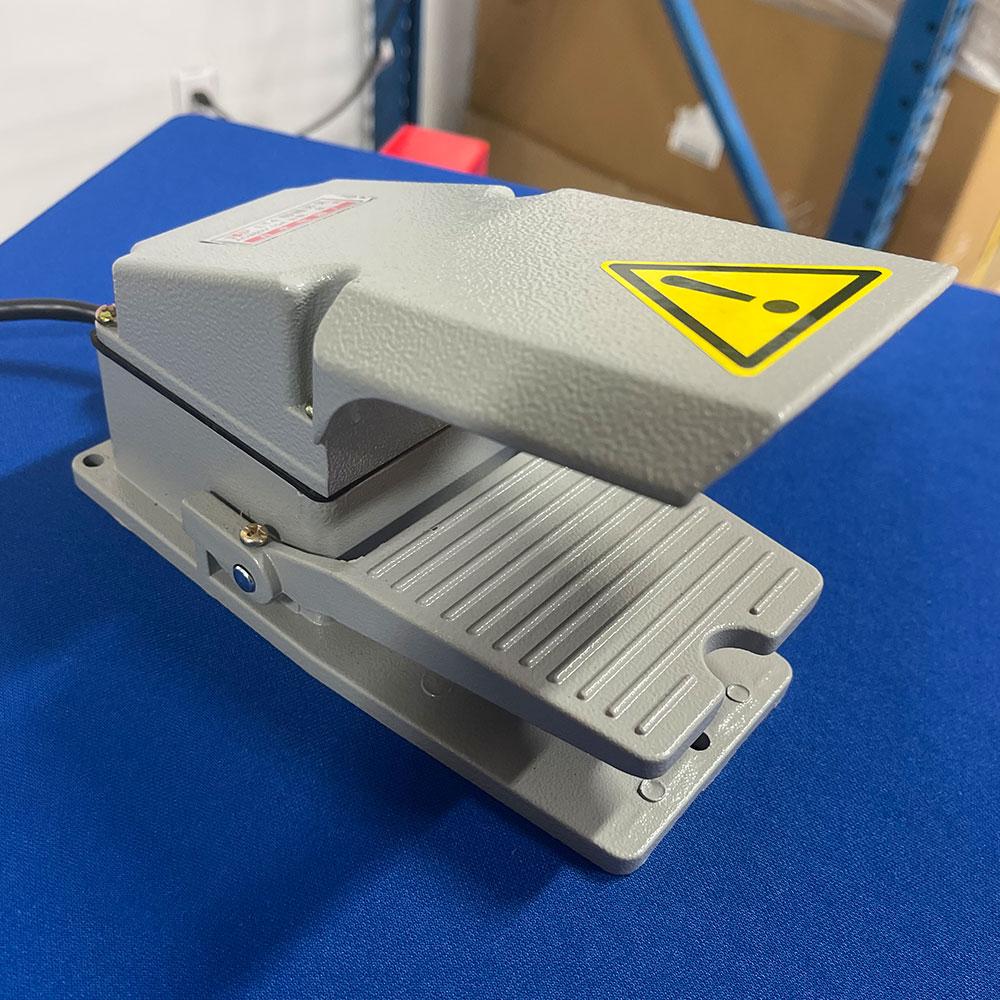

- Foot switch – hands-free operation.

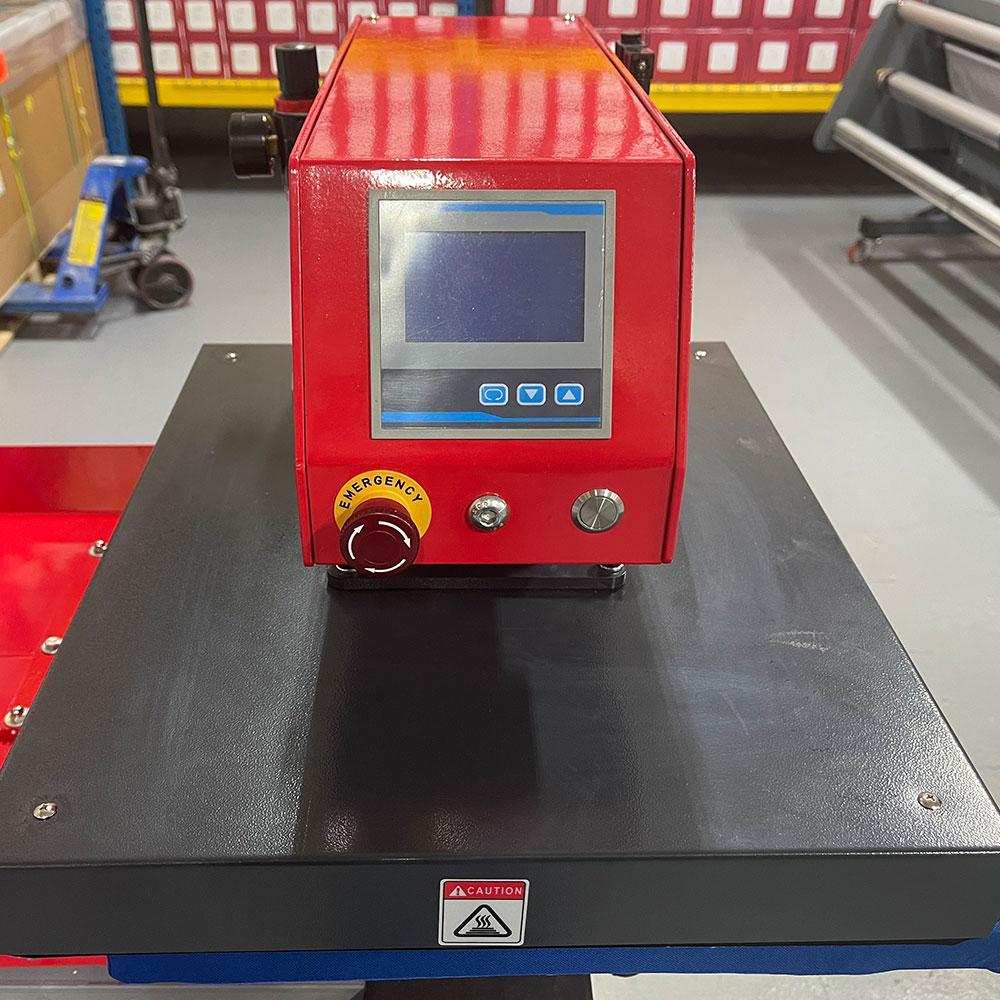

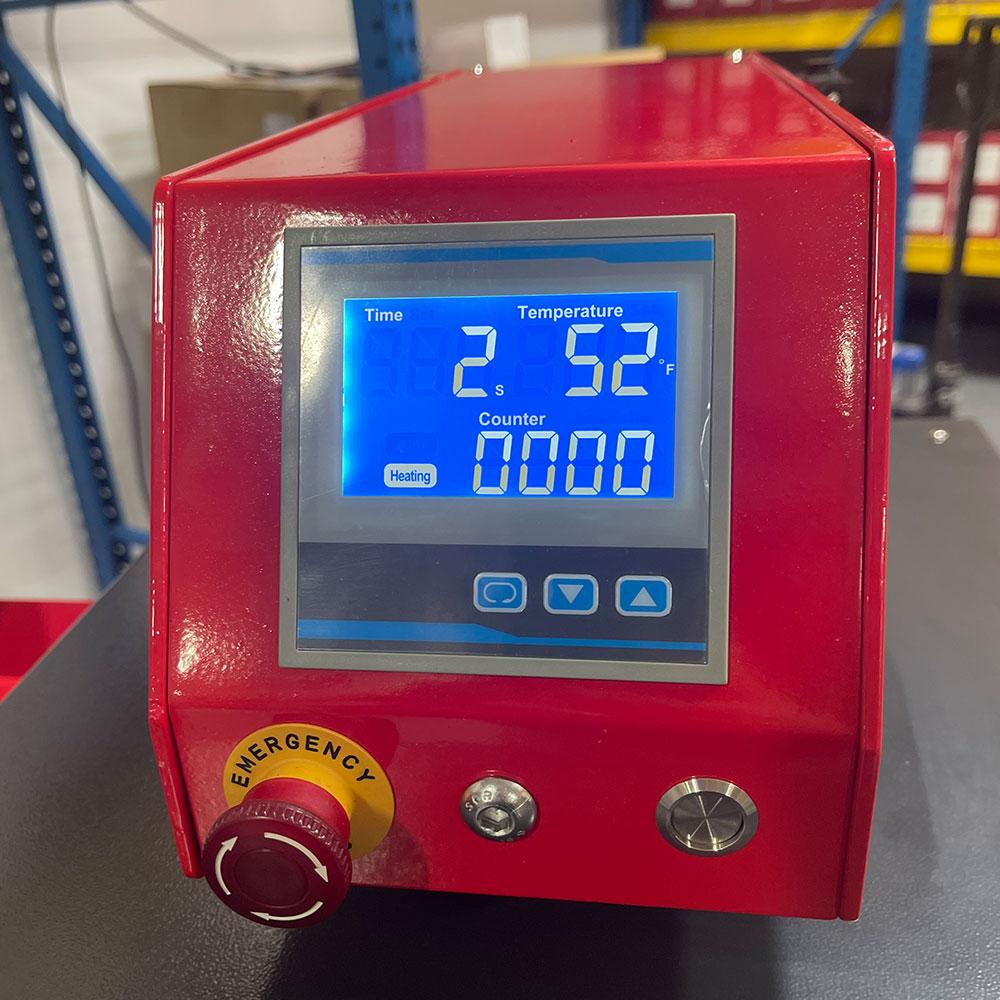

- Touch-screen controls for time and temperature.
- 23 mm cast-aluminum heat platen – even, long-lasting heat.

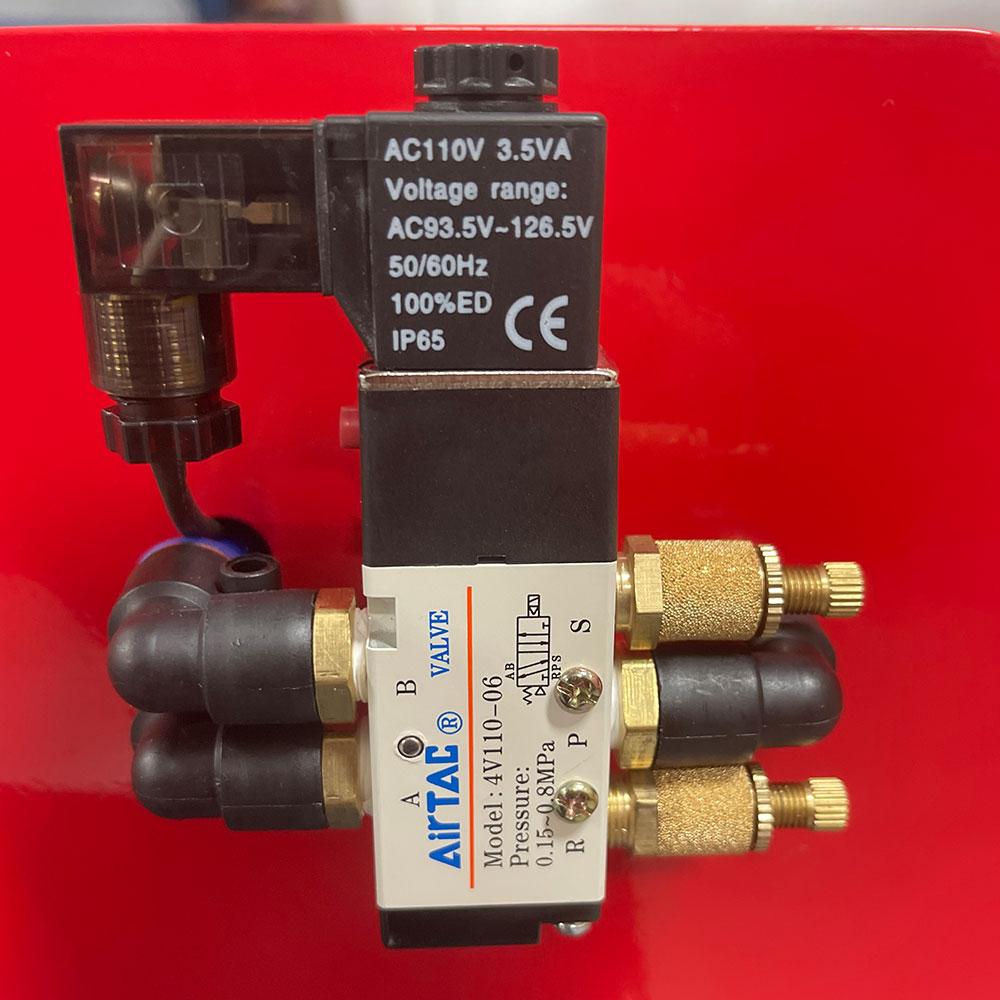

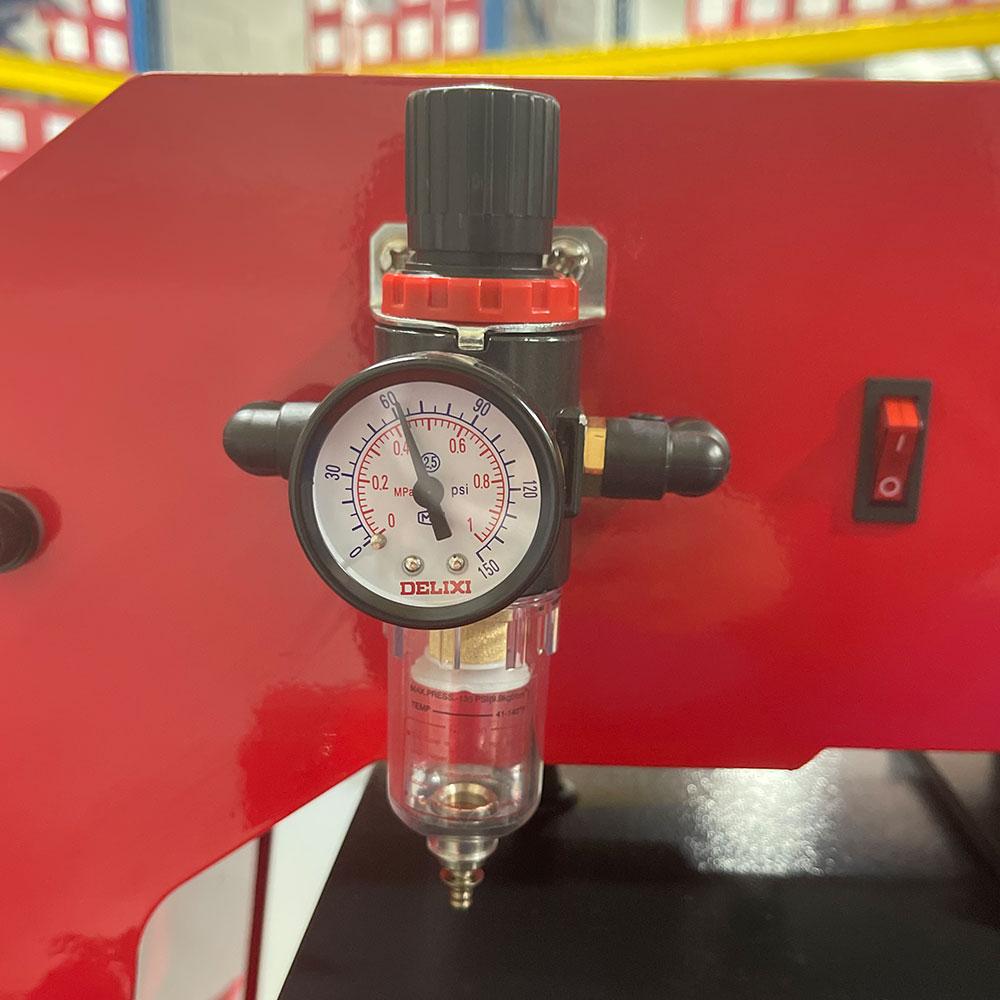

- Safety built in – emergency stop, circuit protection and a water separator that protects the solenoid valve.
Specifications
| Model | PHP-4050AS |
|---|---|
| Platen size | 400 × 500 mm (about 16" × 20") |
| Power | 110 V, 2.5 kW, desktop |
| Temperature | Room temperature to 500°F |
| Timer | 0–999 seconds |
| Drive | Pneumatic cylinder |
| Working pressure | 58–87 PSI |
| Optional small platens | 180 × 500 mm and 280 × 500 mm, for children's and women's garments |
Note: Air compressor sold separately.
